Power adapters are devices that convert electrical energy from one form to another, such as from alternating current (AC) to direct current (DC), or from one voltage level to another. Power adapters are widely used in various electronic devices, such as laptops, smartphones, cameras, and electric vehicles. In this article, we will review the development history and future trends of power adapters, from transformers to wireless charging.
Transformers: The Earliest Power Adapters

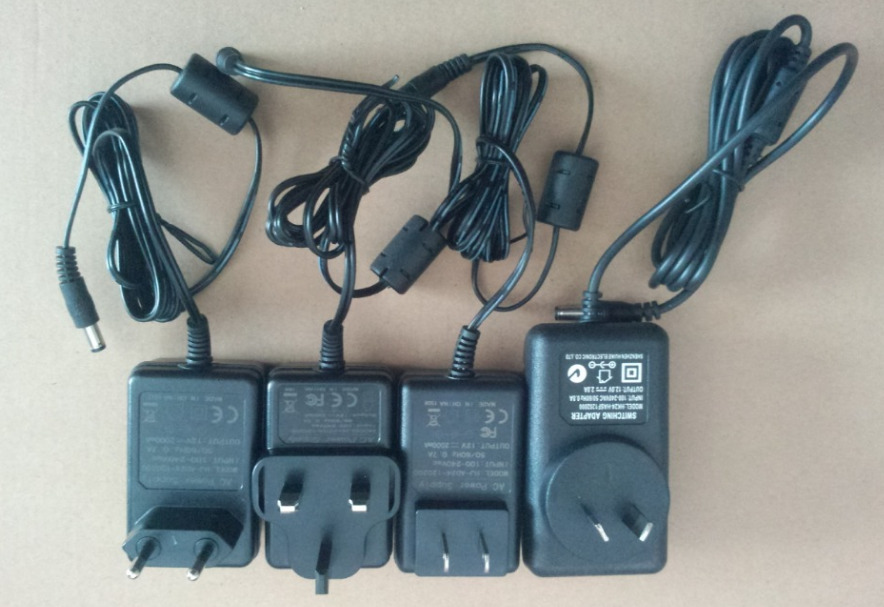

The earliest power adapters were transformers, which were invented in the late 19th century. Transformers use electromagnetic induction to transfer electrical energy between two or more circuits with different voltage levels. Transformers can either step up or step down the voltage, depending on the ratio of the number of turns in the primary and secondary coils. Transformers are still used today in many applications, such as power transmission and distribution, audio systems, and medical equipment.
However, transformers have some limitations and disadvantages. First, transformers can only convert AC to AC, not DC to DC or AC to DC. Second, transformers are bulky and heavy, which makes them unsuitable for portable devices. Third, transformers have losses due to resistance, leakage flux, eddy currents, and hysteresis, which reduce their efficiency and generate heat. Fourth, transformers can cause electromagnetic interference (EMI) and noise, which may affect the performance and quality of other devices.
Switching Power Supplies: The Modern Power Adapters
To overcome the limitations and disadvantages of transformers, switching power supplies were developed in the mid-20th century. Switching power supplies use electronic switches, such as transistors or MOSFETs, to rapidly switch on and off the input voltage, creating a series of pulses with varying duty cycles. These pulses are then filtered and smoothed by capacitors and inductors to produce a stable output voltage. Switching power supplies can convert AC to DC, DC to DC, or DC to AC with high efficiency and low noise. Switching power supplies are also compact and lightweight, which makes them ideal for portable devices.
Switching power supplies have become the dominant type of power adapters in modern electronics. They are used in almost every device that requires a different voltage level than the input source, such as laptops, smartphones, cameras, and electric vehicles. Switching power supplies have also enabled the development of new technologies and applications, such as USB charging ports, fast charging protocols, and smart power management systems.
Wireless Charging: The Future Power Adapters
Wireless charging is an emerging technology that allows devices to be charged without physical contact or cables. Wireless charging uses electromagnetic fields to transfer electrical energy between a transmitter (or charger) and a receiver (or device). Wireless charging can be classified into three types based on the distance between the transmitter and receiver: near-field (or inductive), resonant (or magnetic resonance), and far-field (or radio frequency).
Near-field wireless charging is the most common type of wireless charging today. It uses coils of wire to create a magnetic field that induces a current in another coil of wire in the receiver. Near-field wireless charging requires close alignment and proximity between the transmitter and receiver (usually within a few centimeters). Near-field wireless charging is widely used in devices such as electric toothbrushes, smartwatches, wireless earphones, and smartphones.
Resonant wireless charging is an extension of near-field wireless charging that uses resonant circuits to enhance the coupling between the transmitter and receiver. Resonant wireless charging allows more flexibility and distance between the transmitter and receiver (up to several meters). Resonant wireless charging can also charge multiple devices simultaneously with different power requirements. Resonant wireless charging is still under development and has not been widely adopted yet.
Far-field wireless charging is the most advanced type of wireless charging that uses electromagnetic waves (such as microwaves or radio waves) to transmit electrical energy over long distances (up to several kilometers). Far-field wireless charging does not require direct contact or alignment between the transmitter and receiver. Far-field wireless charging can potentially charge any device that has an antenna or a rectifier circuit. Far-field wireless charging is still in its infancy and faces many challenges and issues, such as safety, efficiency, regulation, and interference.
Conclusion
Power adapters are essential devices that enable various electronic devices to operate with different voltage levels. Power adapters have evolved from transformers to switching power supplies to wireless charging over time. Each generation of power adapters has brought new benefits and challenges for users and manufacturers. Wireless charging is the future trend of power adapters that promises convenience and innovation for consumers and industries.
