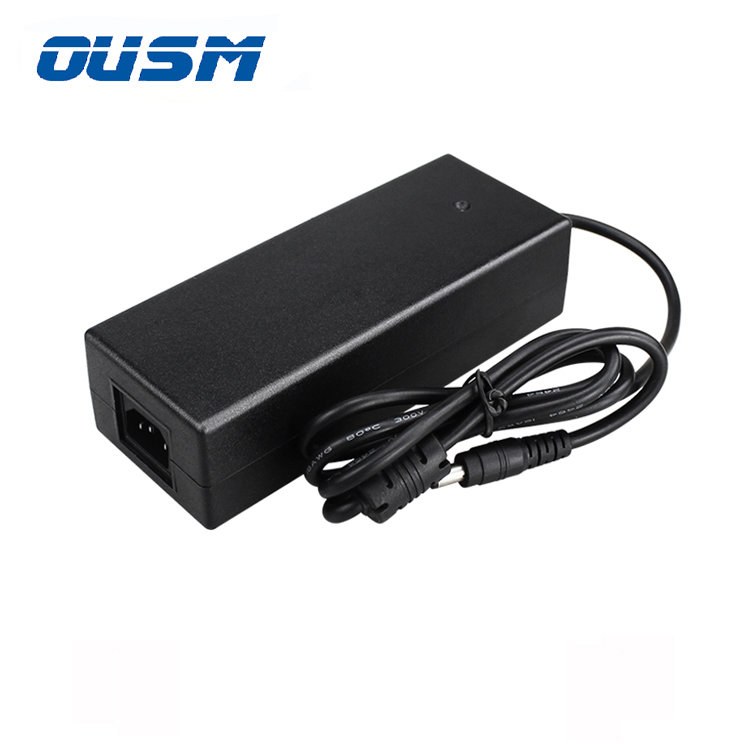

Power Adapters: Principles, Classification, and Buying Guide

    Power adapters are essential devices that convert electrical energy from one form to another to power various electronic devices. Understanding the principles, classification, and critical factors for selecting power adapters is crucial for ensuring compatibility and optimal performance. This article provides a comprehensive overview of power adapters, including their principles of operation, classification based on different criteria, and a helpful buying guide to assist consumers in making informed decisions.

    I. Principles of Operation: Power adapters convert electrical energy from one voltage level or type to another. The primary components of a power adapter include a transformer, rectifier, filter, and voltage regulator.

    1. Transformer: The transformer converts the input voltage to the desired output voltage through electromagnetic induction. It consists of primary and secondary windings that step up or down the voltage as required.
    2. Rectifier: The rectifier circuit converts the alternating (AC) input into direct (DC) output. It typically employs diodes to ensure current flow in a single direction.
    3. Filter: The filter circuit removes any remaining AC ripple or noise from the rectified output, ensuring a stable DC output.
    4. Voltage Regulator: The voltage regulator circuit maintains a constant output voltage by compensating for input voltage fluctuations or load variations.

    II. Classification of Power Adapters: Power adapters can be classified based on various criteria, including voltage, connector type, and application. The following are the primary classification categories:

    1. Voltage Classification: a. AC Adapters: Convert AC input voltage to DC output voltage. b. DC Adapters: Maintain a constant DC output voltage from a DC input.
    2. Connector Type Classification: a. Barrel Connectors: Feature a cylindrical shape with a center pin and outer sleeve. They are commonly used in consumer electronics. b. USB Connectors: Utilize the Universal Serial Bus (USB) interface for powering and charging devices. c. Other Connectors: Include proprietary connectors specific to particular devices or manufacturers.
    3. Application Classification: a. Laptop Adapters: Designed to power and charge laptop computers. b. Mobile Phone Adapters: Specifically engineered to charge mobile phones and other portable devices. c. Specialized Adapters: Tailored for specific applications such as audio/video equipment, medical devices, etc.

    III. Buying Guide for Power Adapters: When selecting a power adapter, it is crucial to consider several factors to ensure compatibility and optimal performance. The following guidelines can assist in making an informed purchase decision:

    1. Voltage and Polarity: Determine the power adapter's required output voltage and polarity, which should match the device's specifications. Mismatched voltage or polarity can damage the device.
    2. Current Rating: Ensure that the power adapter can supply the required current (measured in amps or milliamps) to power the device adequately. A sufficient current may result in underperformance or failure.
    3. Connector Compatibility: Verify that the power adapter's connector type and size are compatible with the device's power input port. Adapters with interchangeable tips or a range of connectors provide greater versatility.
    4. Safety and Certification: Look for power adapters that comply with safety standards, such as UL, CE, or FCC. These certifications ensure that the adapter meets stringent quality and safety requirements.
    5. Efficiency and Energy Consumption: Consider power adapters with higher efficiency ratings (such as ENERGY STAR certified) to minimize energy wastage and reduce electricity costs.
    6. Brand Reputation and Reviews: Opt for reputable brands known for their reliability and quality. Research online reviews and customer feedback to gauge the performance and durability of the adapter.
    7. Warranty and Support: Check the warranty period the manufacturer offers and the availability of customer support. A more extended warranty and responsive customer service can provide peace of mind.


    Power adapters are critical in providing power electronic devices with the correct voltage and current. Understanding their principles of operation, classification based on various criteria, and following a comprehensive buying guide are essential steps to ensure compatibility, safety, and optimal performance. Consumers can confidently select the most suitable power adapter by considering the factors discussed in this article.
