How to Choose and Use Switching Power Adapters Correctly

    Choosing and using switching power adapters is very important because it affects the performance and lifespan of electronic devices and involves the safety of people and property. Therefore, this article will introduce how to choose and use switching power adapters correctly and the future development trend of switching power adapters.

    • What is a switching power adapter?
      • A switching power adapter is a power device that uses a switch tube to control the conversion process of AC power. It mainly consists of transformers, rectifiers, filters, regulators, etc., and can convert AC power into DC power and adjust the output voltage and current according to the needs.
    • Switching power adapters have the following advantages compared with traditional linear power adapters:
      • Higher efficiency, lower energy consumption, less heat generation.
      • Smaller size, lighter weight, easier to carry.
      • More stable output, more vital anti-interference ability, longer lifespan.
    • The function of a switching power adapter
      • The main function of a switching power adapter is to provide suitable DC power for various electronic devices so that they can work usually and perform well. Switching power adapters can protect electronic devices from overvoltage, overcurrent, overtemperature, short circuits, etc., and extend their service life.
      • Switching power adapters can also realize the conversion of AC power standards between countries or regions so that the same electronic device can be used in different places. For example, China's AC power standard is 220V/50Hz, while the United States AC power standard is 110V/60Hz. If there is no switching power adapter, using the same laptop in both countries is impossible.
    1. The Points to Note When Choosing a Switching Power Adapter
    • Output power and voltage
    • Determine the required output power and voltage.
      • Before choosing a switching power adapter, you must determine your desired device's required output power and voltage. This information can be found in the user manual or label of the device. For example, a laptop may require a switching power adapter with an output power of 60W and an output voltage of 19V.
      • Suppose you cannot find the information about the device's required output power and voltage. In that case, you can calculate it using the formula: output power = output voltage × output current. For example, if a smartphone requires a switching power adapter with an output voltage of 5V and an output current of 2A, its output power is 5V×2A=10W.
    • Understand the rated power and voltage range of the power adapter.
      • Consider the rated power and voltage range when choosing a switching power adapter. This information can be found in the user manual or label of the power adapter. For example, a switching power adapter may have a rated power of 65W and an output voltage range of 18-20V.
      • The rated power is the maximum power that a power adapter can continuously output, and the output voltage range is the minimum and maximum voltage that a power adapter can output. When choosing a switching power adapter, you need to ensure that its rated power is greater than or equal to the required output power of the device and that its output voltage range contains or is close to the required output voltage of the device. For example, if a laptop requires a switching power adapter with an output power of 60W and an output voltage of 19V, you can choose a switching power adapter with a rated power of 65W and an output voltage range of 18-20V.
    • Adapter size and connection interface
    • Determine the size and shape requirements of the adapter.
      • When choosing a switching power adapter, you also need to consider the size and shape requirements of the adapter. These requirements mainly depend on the usage scenario and personal preference. For example, if you often need to carry or travel with it, you should choose a small-sized, lightweight, easy-to-carry adapter; if you need to use it on a desktop or wall, you should choose a large-sized, heavy-weighted, stable-placed adapter.
      • The size and shape of the adapter can usually be seen in the introduction or picture of the product. For example, a switching power adapter may have a size of 100mm×50mm×30mm and a cuboid shape.
    • Confirm the type and specification of the connection interface
      • When choosing a switching power adapter, you also need to confirm the type and specification of the connection interface. This information mainly depends on the type and specification of the device and the socket. For example, if the device requires a DC plug, and the socket is a US standard, then you should choose an adapter with a DC plug and a US plug; if the device requires a USB plug, and the socket is a Chinese standard, then you should choose an adapter with a USB plug and a Chinese plug.
      • The type and specification of the connection interface can be seen in the introduction or picture of the product. For example, a switching power adapter may have a connection interface with a DC plug and a US plug.
    • Input voltage and frequency
    • Confirm the input voltage and frequency requirements of the adapter.
      • When choosing a switching power adapter, you also need to confirm the adapter's input voltage and frequency requirements. This information mainly depends on the AC power standard of your region or country. For example, China's AC power standard is 220V/50Hz, while the United States AC power standard is 110V/60Hz.
      • The input voltage and frequency requirements can usually be seen in the introduction or label of the product. For example, a switching power adapter may have an input voltage range of 100-240VAC and an input frequency range of 50-60Hz.

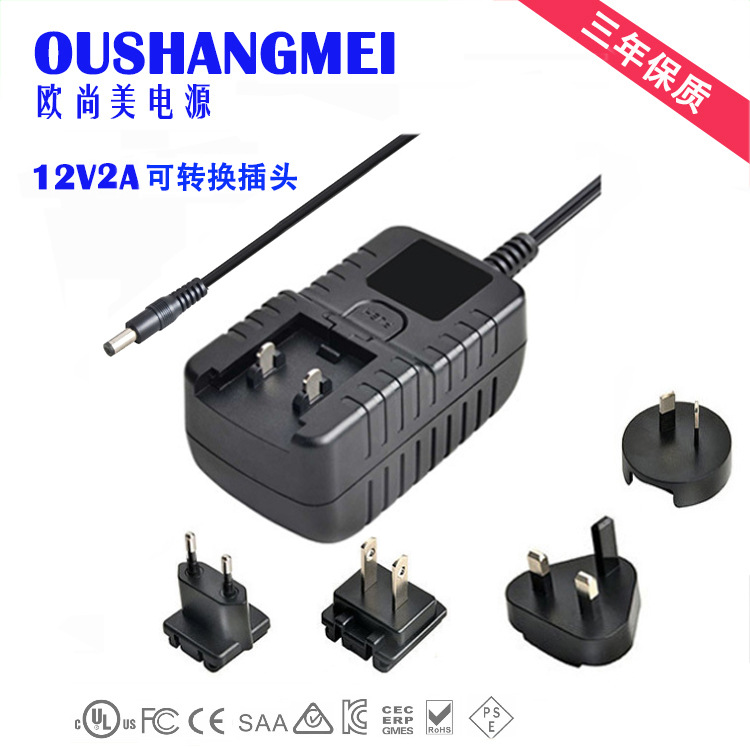

    • Consider the need for international travel or cross-border use
      • When choosing a switching power adapter, you must also consider the need for international travel or cross-border use. This depends on whether you need to use the same device in different regions or countries with different AC power standards. For example, if you need to use your laptop in China and the United States, then you need to choose an adapter that can work in both countries without needing an adapter or converter.
      • Suppose you need to use your device in different regions or countries with different AC power standards. In that case, you have two options: one is to choose a universal switching power adapter that can automatically adjust its input voltage and frequency according to the local power grid; the other is to choose a local switching power adapter that matches the local power grid and use an adapter or converter to connect it to your device.
    • Efficiency and energy standards
    • Look for high-efficiency adapters.
      • When choosing a switching power adapter, you must also look for high-efficiency adapters. High-efficiency adapters can convert more input power into usable output power and waste less input power as heat or noise. This can save energy bills and protect the environment.
      • The efficiency of an adapter can usually be seen in its introduction or label. For example, a switching power adapter may have an efficiency of 85% or higher, which means it can convert at least 85% of the input power into helpful output power.
    • Check the energy standards and certifications.
      • When choosing a switching power adapter, you must check its energy standards and certifications. Energy standards and certifications are indicators or requirements that measure or regulate an adapter's energy consumption or performance. They can help you choose more energy-efficient and environmentally friendly adapters.
      • Some expected energy standards and certifications for adapters are Energy Star, CECP (China Energy Conservation Program), CEC (California Energy Commission), etc. They usually have different levels or grades that indicate different energy efficiency or performance levels. For example, Energy Star has six levels from Level I to Level VI, with Level VI being the most energy-efficient and Level I being the least energy-efficient.
    • Safety and reliability
    • Look for safety certifications and protection mechanisms
      • When choosing a switching power adapter, you must also look for its safety certifications and protection mechanisms. Safety certifications and protection mechanisms are indicators or devices that ensure or enhance the safety and reliability of an adapter. They can help you avoid or reduce accidents or damages caused by faulty or inferior adapters.
      • Some standard safety certifications and protection mechanisms for adapters are UL (Underwriters Laboratories), FCC (Federal Communications Commission), overvoltage protection, overcurrent protection, overtemperature protection, short circuit protection, etc. They usually have different standards or specifications that indicate additional safety or reliability levels. For example, UL has various standards for different types of products, such as UL 60950-1 (Information Technology Equipment - Safety), UL 1310 (Class 2 Power Units), UL 62368-1 (Audio/Video, Information, And Communication Technology Equipment - Part 1: Safety Requirements), etc.
    • Check the manufacturer's reputation and user reviews.
    • When choosing a switching power adapter, you must check its manufacturer's reputation and user reviews. Manufacturers of reputation and user reviews are sources of feedback that reflect or Manufacturer reputation and user reviews are sources or feedbacks that reflect or evaluate the quality and performance of an adapter. They can help you choose more trustworthy and satisfactory adapters. - You can check the manufacturer's reputation and user reviews of an adapter by visiting its official website, online store, social media, etc. You can also consult your friends, relatives, colleagues, etc., who have used or are using the same or similar adapter. You should look for positive and consistent information or feedback that indicates that the adapter is safe, reliable, durable, etc... You should also be aware of harmful or inconsistent information or feedback that indicates that the adapter is unsafe, unreliable, defective, etc. You should avoid buying or using such adapters.
    1. The Points to Note When Using a Switching Power Adapter
    • The correct connection of the adapter
    • Ensure the correct insertion of the adapter and plug.
      • When using a switching power adapter, you need to ensure the correct insertion of the adapter and plug. This means that you need to align the plug or connector of the adapter with the socket or port of the device or the power grid and insert it firmly and securely. It would be best not to force or twist the plug or connector, which may cause damage or malfunction.
      • You should also pay attention to the polarity and voltage of the plug or connector. The polarity refers to the DC output's positive (+) and negative (-) terminals. The voltage refers to the Level of AC or DC power. You should ensure they match those of the device or the power grid. For example, if the device requires a DC plug with a positive center, a negative outer ring, and a voltage of 19V, then you should use an adapter with a DC plug with a positive center, a negative outer ring, and a voltage of 19V.
    • Avoid excessive bending or twisting of the power cord.
      • When using a switching power adapter, you also need to avoid excessive bending or twisting of the power cord. This means you must keep the power cord straight and smooth as much as possible and avoid sharp bends or twists. You should also avoid placing heavy objects on the power cord or pulling or stretching it too hard, as this may cause breakage or short circuit.
      • You should also pay attention to the length and position of the power cord. You should make sure that the power cord is long enough and flexible enough for your needs, and avoid placing it near heat sources, water sources, sharp objects, etc., as this may cause damage or hazard.
    • Temperature and ventilation
    • Avoid overheating the adapter.
      • When using a switching power adapter, you need to avoid overheating the adapter. This means that you need to monitor the temperature of the adapter during use and unplug it immediately if it becomes too hot or emits smoke or odor. You should also seek professional help if necessary.
      • You should also pay attention to the factors that may cause overheating of the adapter, such as overloading, overcharging, poor quality, etc., and avoid them as much as possible. For example, you should not use an adapter that exceeds its rated power or voltage range, charge a device that is already fully charged, or use a counterfeit or inferior adapter.
    • Keep the adapter well-ventilated.
      • When using a switching power adapter, you also need to keep it well-ventilated. This means you must place it in a dry and airy place and avoid covering it with cloth, paper, plastic, etc., as this may block its heat dissipation and air circulation. You should also avoid placing it in direct sunlight, high temperature, high humidity, dust, etc., as this may affect its performance and lifespan.
    • Avoid overloading and short circuit
    • Do not exceed the rated power of the adapter.
      • When using a switching power adapter, you must not exceed its rated power. This means that you need to check the output power of the adapter and compare it with the input power of the device you want to use. Ensure that the adapter's output power is greater than or equal to the input power of the device. For example, if you want to use a laptop that requires an input power of 60W, then you should use an adapter with an output power of 60W or higher.
      • You should also pay attention to the number and type of devices you want to use with one adapter. You should only use one device with one adapter if it has multiple output ports or connectors. You should also not use devices with one adapter with different output voltage or current requirements unless it has variable output voltage or current settings.
    • Avoid using damaged power cords or plugs.
      • When using a switching power adapter, you also need to avoid using damaged power cords or plugs. This means you need to check the condition of the power cords or plugs before use and replace them if they are broken, cracked, burned, deformed, etc. You should also not use power cords or plugs that are not compatible or suitable for the adapter, device, or power grid, as this may cause damage or malfunction.
      • You should also pay attention to the safety and quality of the power cords or plugs. You should use only certified or authorized power cords or plugs that meet the standards and requirements of the adapter, device, or power grid. You should avoid using counterfeit or inferior power cords or plugs that may pose risks.
    • Long-term storage and maintenance
    • Properly store the adapter.
      • It would help to store it properly when not using a switching power adapter. This means you must unplug it from the device and the power grid and wrap the power cord neatly and securely. You should also place it in a dry and ventilated place and avoid exposing it to direct sunlight, high temperature, high humidity, dust, etc., as this may affect its quality and safety.
      • You should also pay attention to the storage time and condition of the adapter. It would be best to store it for too long without using it, as this may cause deterioration or damage. You should also check it regularly and make sure it is in good condition before using it again.
    • Regularly clean and inspect the adapter
      • When using a switching power adapter, you must regularly clean and inspect it. This means that you need to use a soft cloth or a brush to gently wipe the surface of the adapter regularly and remove any dust or dirt that may accumulate on it. You should not use water or any corrosive liquids to clean it, as this may cause damage or malfunction.
      • You should also use a multimeter or a tester to check the adapter's output voltage and current regularly and ensure they are within the specified range. If they deviate from the specified values, you should not use the adapter and contact the manufacturer or a professional technician for repair.
    1. Common Problems and Troubleshooting
    • The adapter does not work.
      • Possible causes: The adapter is not plugged in properly; The adapter is damaged or defective; The device is damaged or defective; The power grid is unstable or abnormal.
      • Possible solutions: Check the connection of the adapter and plug; Check the appearance of the adapter for any cracks, burns, deformations, etc.; Check the output voltage and current of the adapter with a multimeter or a tester; Check the condition of the device for any faults or errors; Check the voltage and frequency of the power grid with a voltmeter or a frequency meter.
    • Overheating and overloading problems
      • Possible causes: The adapter is overloaded or overcharged; The adapter is poor quality or counterfeit; The adapter is poorly ventilated or covered; The ambient temperature or humidity is too high.
      • Possible solutions: Reduce the load or charge of the adapter; Replace the adapter with a high-quality or genuine one; Improve the ventilation or uncover the adapter; Lower the ambient temperature or humidity.
    • Output voltage instability
      • Possible causes: The input voltage or frequency is unstable or abnormal; The output voltage range of the adapter is too wide or too narrow; The output voltage regulator of the adapter is malfunctioning; The device is incompatible or unsuitable for the adapter.
      • Possible solutions: Stabilize the input voltage or frequency with a stabilizer or a converter; Choose an adapter with a suitable output voltage range for your device; Replace the output voltage regulator of the adapter with a new one; Choose a compatible or suitable device for your adapter.
    • Other common problems and solutions
    • Noise: Possible causes: The input voltage or frequency is unstable or abnormal; The output ripple or noise of the adapter is too high; The filter capacitor of the adapter is damaged; The device is incompatible or unsuitable for the adapter. Possible solutions: Stabilize the input voltage or frequency with a stabilizer or a converter; Choose an adapter with a low output ripple or noise; Replace the filter capacitor of the adapter with a new one; Choose a compatible or suitable device for your adapter.
      • Leakage: Possible causes: The insulation of the adapter is damaged or worn; The adapter is exposed to water or moisture; The adapter is poor quality or counterfeit. Possible solutions: Replace the insulation of the adapter with a new one; Dry the adapter and keep it away from water or moisture; Replace the adapter with a high-quality or genuine one.
      • Explosion: Possible causes: The adapter is overheated or overcharged; The adapter is short-circuited or open-circuited; The adapter is poor quality or counterfeit. Possible solutions: Reduce the heat or charge of the adapter; Repair the short-circuit or open-circuit of the adapter; Replace the adapter with a high-quality or genuine one.
    1. The Future Development of Switching Power Adapters
    • Improvement and innovation of existing technologies
    • The future development of switching power adapters will focus on improving and innovating the existing technologies, such as increasing efficiency and stability, reducing size and weight, enhancing safety and reliability, etc. For example, some new technologies that may be applied to switching power adapters are:
      • GaN (gallium nitride) transistors can achieve higher switching frequency, lower conduction loss, and higher power density than traditional silicon transistors.
      • Digital control can achieve more precise and flexible output voltage and current regulation than analog control.
      • Wireless communication can enable remote monitoring and control of switching power adapters via smartphones, tablets, etc.
    • Green and sustainable development trend
    • The future development of switching power adapters will also follow the green and sustainable development trend, such as reducing energy consumption and carbon emission, using renewable energy sources, adopting eco-friendly materials, etc. For example, some new initiatives that may be taken by switching power adapters are:
      • Energy harvesting can convert ambient energy sources, such as solar, wind, vibration, etc., into electrical energy for switching power adapters.
      • Energy storage can store excess electrical energy for switching power adapters when the demand is low and release it when the demand is high.
      • Biodegradable materials can decompose naturally after being discarded, reducing environmental pollution and waste.
    • Application of wireless charging technology
    • The future development of switching power adapters will also involve wireless charging technology, which can eliminate the need for a physical connection between switching power adapters and electronic devices and achieve more convenient and flexible charging. For example, some new scenarios that may be enabled by wireless charging technology are:
      • Wireless charging pads can charge multiple electronic devices simultaneously by placing them on a pad that emits electromagnetic waves.
      • Wireless charging stations can charge electronic devices remotely by transmitting electromagnetic waves through antennas or beams.
      • Wireless charging vehicles can use electromagnetic induction or resonance to charge electronic devices on the go.
    1. Conclusion
    • Summary of main points
    • This article has introduced how to choose and use switching power adapters correctly and the future development trend of switching power adapters. It has covered the following aspects:
      • The concept and function of switching power adapters
      • The points to note when choosing a switching power adapter
      • The points to note when using a switching power adapter
      • The common problems and troubleshooting of switching power adapters
      • The future development of switching power adapters
    • Emphasis on the importance of choosing and using switching power adapters correctly
    • Choosing and using switching power adapters correctly is very important because it can affect the performance and lifespan of electronic devices and the safety of people and property. Therefore, we should pay attention to the following points when choosing and using switching power adapters:
      • Choose a suitable output power and voltage for your device.
      • Choose a compatible size and connection interface for your device.
      • Choose an appropriate input voltage and frequency for your region or country.
      • Choose a high-efficiency and energy-saving adapter.
      • Choose a safe and reliable adapter.
      • Connect the adapter correctly and securely
      • Avoid overheating and overloading of the adapter.
      • Avoid using damaged or incompatible cords or plugs.
