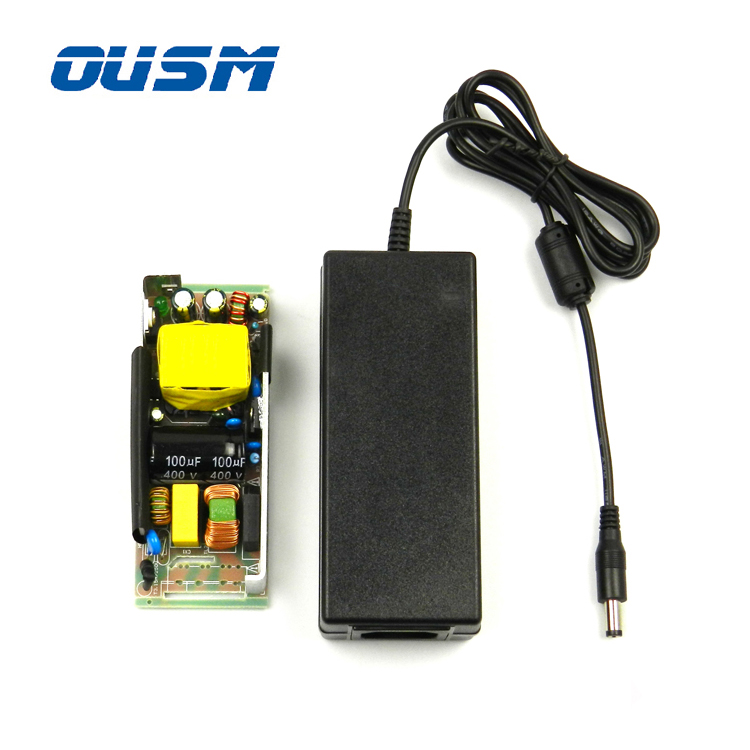

A power adapter is an external supply that converts alternating current (AC) to direct current (DC) to provide the required voltage and current for electronic devices. Different electronic devices may need different power adapters, so it is vital to understand the interface types of power adapters. This article will introduce the interface types of power adapters from the following aspects:
- The input interface of the power adapter
- The output interface of the power adapter
- The interface matching principle of the power adapter
The input interface of the power adapter
The input interface of the power adapter is the part that connects to the AC power socket, usually in two forms: wall-mounted and desktop. The wall-mounted power adapter plugs directly into the socket without extra cables, while the desktop power adapter must connect to the socket through a cable.
Different regions or countries may have different AC voltages, frequencies, and socket types, so you need to choose a suitable input interface. The International Electrotechnical Commission (IEC) publishes a guide categorizing plugs with letter designations. For example, Type A plugs (used in North America, Central America, and Japan) have two parallel blades, Type B plugs (used in North America, Central America, and Japan) have two parallel blades and a round ground pin, Type C plugs (used in Europe, Asia, and Africa) have two round pins and so on.
In addition to the plug type, you must consider whether the input interface's rated voltage and current match the AC power source. Generally, the input interface will indicate its supported range, such as 100-240V AC 50/60Hz. If the input interface does not support the parameters of the AC power source, it may cause damage or danger.
The output interface of the power adapter
The output interface of the power adapter is the part that connects to the electronic device, usually in various forms, classified according to factors such as output DC value, polarity, size, and shape. Common output interface types are:
- Cylindrical connectors: have a cylindrical center pin and a ring-shaped shell; the center pin can be positive or negative, and the shell is opposite. Cylindrical connectors have different diameters and lengths, such as 5.5mm x 2.1mm, 5.5mm x 2.5mm, etc.
- USB connectors: have a flat four-pin plug to transfer data and power. USB connectors have different versions and specifications, such as USB-A, USB-B, USB-C, USB 2.0, USB 3.0, etc.
- PCIe connectors: have a rectangular multi-pin plug that provides extra power for expansion cards such as graphics cards. PCIe connectors have different physical configurations, such as x1, x4, x8, x16, x32 etc.
- Other types: Other output interfaces, such as alligator clips, banana plugs, XLR connectors, etc.
In addition to the output interface type, you must pay attention to whether the output interface's rated voltage and current match the electronic device. Generally, the output interface will indicate its parameters, such as 12V DC 2A. If the output interface does not support the parameters the electronic device requires, it may cause failure or damage.
The interface matching principle of the power adapter
When choosing a suitable power adapter, you need to follow these principles:
- The input interface should match the AC power socket, including plug type, rated voltage, and rated current.
- The output interface should match the electronic device, including connector type, polarity, size, shape, voltage, and current.
- Suppose you cannot find a completely matching input or output interface. In that case, you can use a converter or conversion cable, but ensure it meets the above principles after conversion.
In summary, understanding different types of power adapter interfaces can help us choose suitable external power supplies for our devices. When choosing them, we should consider whether the input and output interfaces are compatible with AC power sources and devices and use appropriate converters or conversion cables for conversion.
